Sample Deliverable

A clear basis for contractor review.

Explore how quantities, document references, assumptions, and open questions can be organized. All sample details are fictional.

Illustrative quantity package

Read the notes. Follow the references.

This is a presentation specimen, not a customer project or a commitment to a particular estimate template.

Open Full-Size Plan ↗

HORIZON · ILLUSTRATIVE SAMPLE

Scope notes

Fictional utility quantity package · Revision 01

01 / Document basis

Fictional utility plan C-101 and schedule C-102: original issue January 5, 2030; controlling revision 01 January 12, 2030. These invented dates identify this specimen only. No customer project is represented.

02 / Included work

Storm, sanitary, and water quantity register
Plan-reference notes and identified discrepancies
Assumptions and exclusions for contractor review

03 / Clarification needed

Water connection: The fictional plan and utility schedule show different connection details. Confirm the controlling detail before final pricing.

04 / Pricing boundary

Quantity-only specimen. Labor, material, equipment, and other pricing inputs are excluded. Final pricing and bid submission remain with the contractor.

05 / Review before delivery

Check document references, included systems, quantity units, assumptions, and open items against the accepted assignment. This specimen illustrates the review structure; it is not a record of completed project work.

06 / Changes and follow-up

New drawings, changed scope, and additional deliverables are reviewed before proceeding. Actual clarification support is defined in the engagement.

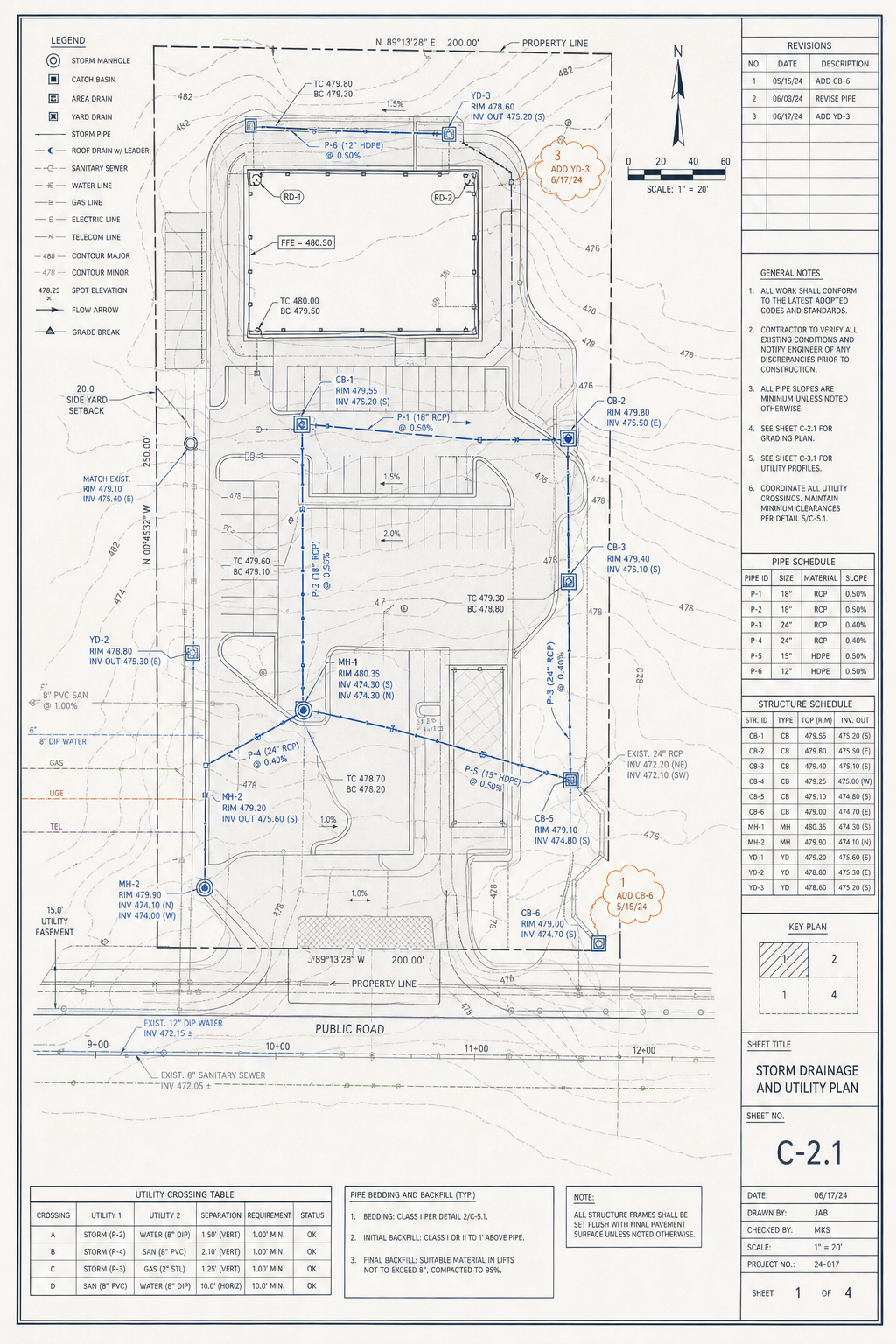

Fictional civil plan with utility alignments, grading contours, structures, and annotations — Fictional plan illustration. Open full size to inspect linework; this illustration is not the source of the specimen quantities below.

Quantity register

Illustrative values only
System	Item	Quantity	Reference
Storm	24 in. RCP	420 LF	C-101
Sanitary	8 in. PVC	685 LF	C-101
Water	10 in. DIP	310 LF	C-102 · clarify connection

Quantities are synthetic examples, not measurements extracted from the illustrative plan image.

Revised-plan comparison

Fictional C-101 original issue January 5, 2030 compared with controlling revision 01 dated January 12, 2030. These values are invented to demonstrate a change register.

Illustrative changes only; no source quantities are certified
Item / reference	Original	Revision 01	Change	Review note
24 in. RCP / C-101	390 LF	420 LF	+30 LF	Added fictional alignment segment
8 in. PVC / C-101	685 LF	685 LF	0 LF	No quantity change in specimen
Water connection / C-102	Detail A	Detail B	Unresolved	Clarify controlling detail before pricing

Fictional model handoff concept

Machine-control model summary

Output: Topcon-compatible .tp3
Surface: Proposed grade only
Included features: Agreed plan features and supplied control points
Field responsibility: Contractor/surveyor localization, calibration, verification, and use

This summary is illustrative. No executable model or customer data is included.

Your next step

Let's review the fit for your project.

Email the service and timing you need. Do not attach plans; document transfer is agreed separately. Scope, availability, fee, and delivery timing are confirmed before work begins.

Email for Project Review →Contact Options
